Aqua-BX Box Gutter Fascia Brackets

Aqua-BX Box Gutter Fascia Brackets

The AQUA-BX range of box gutters is fabricated from 2.0mm sheet aluminium. The range is available in five standard sizes and bespoke profiles / sizes can be manufactured to meet customer requirements. AQUA-BX Box gutters are suitable for direct fix at 600mm centres or fascia bracket fixing at maximum 900mm centres. It is recommended that when using fascia brackets, additional support by direct fixing ought to be used, especially on the larger profile sizes. Expansion co-efficients are incorporated into the gutter design. Additional fixings are recommended near cross bracings.

Any RAL Colour

Description

Description

GUTTER LENGTHS
Length	100x75mm	125x100mm	150x100mm	150x150mm	200x150mm
3.0m	ACB4/1/3	ACB5/1/3	ACB6/1/3	ACB64/1/3	ACB8/1/3
2.5m	ACB4/1/25	ACB5/1/25	ACB6/1/25	ACB64/1/25	ACB8/1/25
2.0m	ACB4/1/2	ACB5/1/2	ACB6/1/2	ACB64/1/2	ACB8/1/2
1.0m	ACB4/1/1	ACB5/1/1	ACB6/1/1	ACB64/1/1	ACB8/1/1
0.5m	ACB4/1/05	ACB5/1/05	ACB6/1/05	ACB64/1/05	ACB8/1/05

ANGLES
Angles	100x75mm	125x100mm	150x100mm	150x150mm	200x150mm
External Angles 90°	ACB4/2	ACB5/2	ACB6/2	ACB64/2	ACB8/2
Internal Angles 90°	ACB4/3	ACB5/3	ACB6/3	ACB64/3	ACB8/3
External Angles 135°	ACB4/4	ACB5/4	ACB6/4	ACB64/4	ACB8/4
Internal Angles 135°	ACB4/5	ACB5/5	ACB6/5	ACB64/5	ACB8/5
Non Standard Angles	ACB4/6	ACB5/6	ACB6/6	ACB64/6	ACB8/6

OUTLETS
Size	100x75mm	125x100mm	150x100mm	150x150mm	200x150mm
Outlet – 75mm Ø	ACB4/12	ACB5/12	ACB6/12	ACB64/12	ACB8/12
Outlet – 100m Ø	N/A	ACB5/13	ACB6/13	ACB64/13	ACB8/13
Outlet – 75mm x 75mm	ACB4/14	ACB5/14	ACB6/14	ACB64/14	ACB8/14
Outlet – 100mmx 75mm	ACB4/15	ACB5/15	ACB6/15	ACB64/15	ACB8/15
Outlet – 100mmx100mm	N/A	ACB5/16	ACB6/16	ACB64/16	ACB8/16

STOP ENDS / UNIONS
Ends / Unions	100x75mm	125x100mm	150x100mm	150x150mm	200x150mm
Stop Ends – RH External	ACB4/8	ACB5/8	ACB6/8	ACB64/8	ACB8/8
Stop Ends – LH External	ACB4/9	ACB5/9	ACB6/9	ACB64/9	ACB8/9
Joint Connector	ACB4/10	ACB5/10	ACB6/10	ACB64/10	ACB8/10

BRACKETS
Brackets	100x75mm	125x100mm	150x100mm	150x150mm	200x150mm

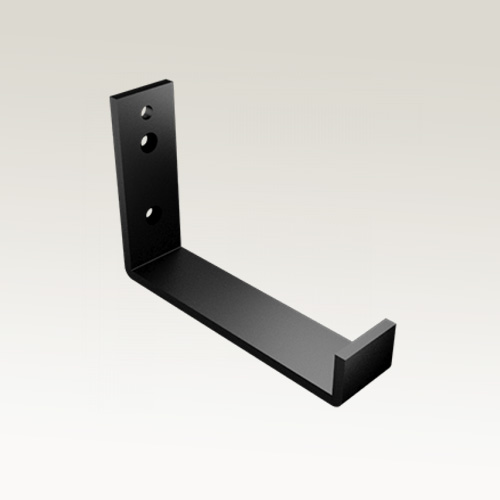

Fascia Brackets	ACB4/7	ACB5/7	ACB6/7	ACB64/7	ACB8/7
Rafter Brackets – Top Fix	ACB4/20	ACB5/20	ACB6/20	ACB64/20	ACB8/20
Rafter Brackets – Side Fix	ACB4/21	ACB5/21	ACB6/21	ACB64/21	ACB8/21
Rise & Fall Brackets	ACB4/22	ACB5/22	ACB6/22	ACB64/22	ACB8/22
