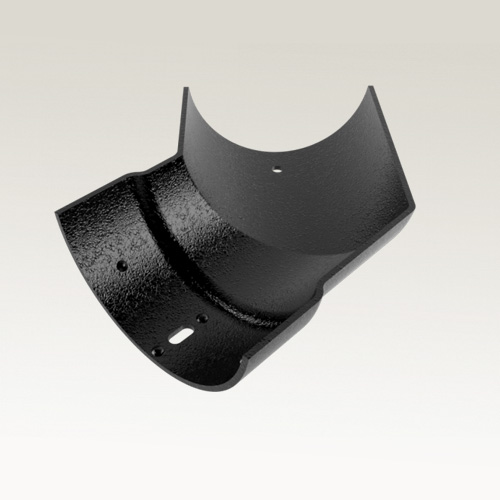

Half Round 135° External Angle Gutter

Half Round 135° External Angle Gutter

The Cast Range is a commonly specified half round shape that is fully interchangeable with gutters of similar section, making it ideal for repair and refurbishment projects as well as new buildings.

There are three normal widths in the range, 100mm, 125mm & 150mm. All gutter lengths and angles are supplied with one left hand cast-on socket viewed from the front. All outlets are supplied with two cast-on sockets.

Any RAL Colour

Description

Description

GUTTER LENGTHS
Length	100mm – 4″	125mm – 5″	150mm – 6″
1.83m – (6ft)	ACC4/1	ACC5/1	ACC6/1

ANGLES
Angles	100mm – 4″	125mm – 5″	150mm – 6″
External Angles 90°	ACC4/2	ACC5/2	ACC6/2
Internal Angles 90°	ACC4/3	ACC5/3	ACC6/3
External Angles 135°	ACC4/4	ACC5/4	ACC6/4
Internal Angles 135°	ACC4/5	ACC5/5	ACC6/5
Non Standard Angles	ACC4/6	ACC5/6	ACC6/6

OUTLETS
Size	100mm – 4″	125mm – 5″	150mm – 6″
Outlet – 75mm Ø	ACC4/12	ACC5/12	ACC6/12
Outlet – 100mm Ø	N/A	ACC5/13	ACC6/13

STOP ENDS / UNIONS
Ends / Unions	100mm – 4″	125mm – 5″	150mm – 6″
Stop Ends – RH External	ACC4/8	ACC5/8	ACC6/8
Stop Ends – LH External	ACC4/9	ACC5/9	ACC6/9
Joint Connector	ACC4/10	ACC5/10	ACC6/10

BRACKETS
Brackets	100mm – 4″	125mm – 5″	150mm – 6″
Fascia Brackets	ACC4/7	ACC5/7	ACC6/7
Rafter Brackets – Top Fix	ACC4/20	ACC5/20	ACC6/20
Rafter Brackets – Side Fix	ACC4/21	ACC5/21	ACC6/21
Rise & Fall Brackets	ACC4/22	ACC5/22	ACC6/22
