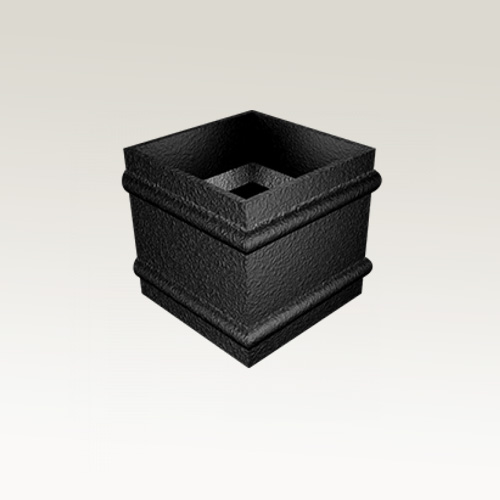

Heritage Range Cast Collar Square and Rectangular Rainwater Pipe Collar Plain

Heritage Range Cast Collar Square and Rectangular Rainwater Pipe Collar Plain

The Alu-cast range of round, square and rectangular downpipes have a Heritage style diecast socket, which is factory fitted to each extruded length. The socket detail has double rings and is available with or without fixing ears. When ordering bends and Y junctions with ears, please indicate if you require left or right handed. A wide variety of extension brackets and clips can be made to order.

Any RAL Colour

Description

Description

PIPE LENGTHS
	Square & Rectangular Pipes			Circular Pipes
Length	75 x 75mm (3″ x 3″)	100 x 75mm (4″ x 3″)	100 x 100mm (4″ x 4″)	76mm Ø (3″)	100mm Ø (4″)
3.0m	ACCSP3C/3	ACCSP43/C/3	ACCSP4/C/3	ACCRP3/C/3	ACCRP4/C/3
2.5m	ACCSP3C/25	ACCSP43/C/25	ACCSP4/C/25	ACCRP3/C/25	ACCRP4/C/25
2.0m	ACCSP3C/2	ACCSP43/C/2	ACCSP4/C/2	ACCRP3/C/2	ACCRP4/C/2
1.0m	ACCSP3C/1	ACCSP43/C/1	ACCSP4/C/1	ACCRP3/C/1	ACCRP4/C/1
0.5m	ACCSP3C/05	ACCSP43/C/05	ACCSP4/C/05	ACCRP3/C/05	ACCRP4/C/05

BENDS
	Square & Rectangular Pipes			Circular Pipes
Bends	75 x 75mm (3″ x 3″)	100 x 75mm (4″ x 3″)	100 x 100mm (4″ x 4″)	76mm Ø (3″)	100mm Ø (4″)
92.5° – 112.5° – 135° – NS	ACCSP3C/8	ACCSP43/C/8	ACCSP4/C/8	ACCRP3/C/8	ACCRP4/C/8
Rainwater Shoes	ACCSP3C/12	ACCSP43/C/12	ACCSP4/C/12	ACCRP3/C/12	ACCRP4/C/12
Access Plate	ACCSP3C/13	ACCSP43/C/13	ACCSP4/C/13	ACCRP3/C/13	ACCRP4/C/13
Access Pipes 10.5m	ACCSP3C/14	ACCSP43/C/14	ACCSP4/C/14	ACCRP3/C/14	ACCRP4/C/14

PROJECTION OFFSET
	Square & Rectangular Pipes			Circular Pipes
Projection Offset	75 x 75mm (3″ x 3″)	100 x 75mm (4″ x 3″)	100 x 100mm (4″ x 4″)	76mm Ø (3″)	100mm Ø (4″)
63mm – 149mm 1 part	ACCSP3C/4	ACCSP43/C/4	ACCSP4/C/4	ACCRP3/C/4	ACCRP4/C/4
150mm – 400mm 2 part	ACCSP3C/5	ACCSP43/C/5	ACCSP4/C/5	ACCRP3/C/5	ACCRP4/C/5
401mm – 750mm 2 part	ACCSP3C/6	ACCSP43/C/6	ACCSP4/C/6	ACCRP3/C/6	ACCRP4/C/6
751mm – 1000mm 2 part	ACCSP3C/7	ACCSP43/C/7	ACCSP4/C/7	ACCRP3/C/7	ACCRP4/C/7

BENDS
	Square & Rectangular Pipes			Circular Pipes
Bends	75 x 75mm (3″ x 3″)	100 x 75mm (4″ x 3″)	100 x 100mm (4″ x 4″)	76mm Ø (3″)	100mm Ø (4″)
92.5° – 112.5° – 135° – NS	ACCSP3C/15	ACCSP43/C/15	ACCSP4/C/15	ACCRP3/C/15	ACCRP4/C/15

BRACKETS & COLLARS
	Square & Rectangular Pipes			Circular Pipes
Brackets	75 x 75mm (3″ x 3″)	100 x 75mm (4″ x 3″)	100 x 100mm (4″ x 4″)	76mm Ø (3″)	100mm Ø (4″)
Flush Fit	ACCSP3C/20	ACCSP43/C/20	ACCSP4/C/20	ACCRP3/C/20	ACCRP4/C/20
Extended 30mm Stand-off	ACCSP3C/21	ACCSP43/C/21	ACCSP4/C/21	ACCRP3/C/21	ACCRP4/C/21
Extended 2 part variable	ACCSP3C/22	ACCSP43/C/22	ACCSP4/C/22	ACCRP3/C/22	ACCRP4/C/22
Cast Collar with Ears	ACCSP3C/23	ACCSP43/C/23	ACCSP4/C/23	ACCRP3/C/23	ACCRP4/C/23
Cast Collar Plain	ACCSP3C/24	ACCSP43/C/24	ACCSP4/C/24	ACCRP3/C/24	ACCRP4/C/24
