Swaged Circular Rainwater 92.5° Bend Pipe

Swaged Circular Rainwater 92.5° Bend Pipe

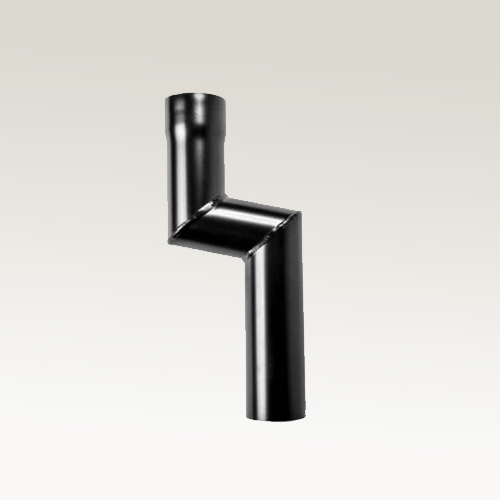

The Modern range of extruded aluminium pipes incorporate a swaged jointing system with separate wall fixing brackets. These brackets can either be as standard or a special design to accommodate stand-off requirements. The pipe range is available in diameters 75mm, 100mm & 150mm in round profile, and 75mm x 75mm, 100mm x 100mm & 150mm x 150mm in square profile.

Any RAL Colour

Description

Description

PIPE LENGTHS
	Square & Rectangular Pipes			Circular Pipes
Length	75 x 75mm (3″ x 3″)	100 x 75mm (4″ x 3″)	100 x 100mm (4″ x 4″)	76mm Ø (3″)	100mm Ø (4″)	100mm Ø (6″)
3.0m	ACCSP3/S/3	ACCSP43/S/3	ACCSP4/S/3	ACCRP3/S/3	ACCRP4/S/3	ACCRP6/S/3
2.5m	ACCSP3/S/25	ACCSP43/S/25	ACCSP4/S/25	ACCRP3/S/25	ACCRP4/S/25	ACCRP6/S/25
2.0m	ACCSP3/S/2	ACCSP43/S/2	ACCSP4/S/2	ACCRP3/S/2	ACCRP4/S/2	ACCRP6/S/2
1.0m	ACCSP3/S/1	ACCSP43/S/1	ACCSP4/S/1	ACCRP3/S/1	ACCRP4/S/1	ACCRP6/S/1
0.5m	ACCSP3/S/05	ACCSP43/S/05	ACCSP4/S/05	ACCRP3/S/05	ACCRP4/S/05	ACCRP6/S/05

BENDS
	Square & Rectangular Pipes			Circular Pipes
Bends	75 x 75mm (3″ x 3″)	100 x 75mm (4″ x 3″)	100 x 100mm (4″ x 4″)	76mm Ø (3″)	100mm Ø (4″)	100mm Ø (6″)
92.5° – 112.5° – 135° – NS	ACCSP3/S/8	ACCSP43/S/8	ACCSP4/S/8	ACCRP3/S/8	ACCRP4/S/8	ACCRP6/S/8
Rainwater Shoes	ACCSP3/S/12	ACCSP43/S/12	ACCSP4/S/12	ACCRP3/S/12	ACCRP4/S/12	ACCRP6/S/12
Access Plate	ACCSP3/S/13	ACCSP43/S/13	ACCSP4/S/13	ACCRP3/S/13	ACCRP4/S/13	ACCRP6/S/13
Access Pipes 10.5m	ACCSP3/S/14	ACCSP43/S/14	ACCSP4/S/14	ACCRP3/S/14	ACCRP4/S/14	ACCRP6/S/14

PROJECTION OFFSET
	Square & Rectangular Pipes			Circular Pipes
Projection Offset	75 x 75mm (3″ x 3″)	100 x 75mm (4″ x 3″)	100 x 100mm (4″ x 4″)	76mm Ø (3″)	100mm Ø (4″)	100mm Ø (6″)
63mm – 149mm 1 part	ACCSP3/S/5	ACCSP43/S/5	ACCSP4/S/5	ACCRP3/S/5	ACCRP4/S/5	ACCRP6/S/5
150mm – 400mm 2 part	ACCSP3/S/6	ACCSP43/S/6	ACCSP4/S/6	ACCRP3/S/6	ACCRP4/S/6	ACCRP6/S/6
401mm – 750mm 2 part	ACCSP3/S/7	ACCSP43/S/7	ACCSP4/S/7	ACCRP3/S/7	ACCRP4/S/7	ACCRP6/S/7

Y JUNCTIONS
	Square & Rectangular Pipes			Circular Pipes
y Junctions	75 x 75mm (3″ x 3″)	100 x 75mm (4″ x 3″)	100 x 100mm (4″ x 4″)	76mm Ø (3″)	100mm Ø (4″)	100mm Ø (6″)
92.5° – 112.5° – 135° – NS	ACCSP3/S/15	ACCSP43/S/15	ACCSP4/S/15	ACCRP3/S/15	ACCRP4/S/15	ACCRP6/S/15

BRACKETS & COLLARS
	Square & Rectangular Pipes			Circular Pipes
Brackets	75 x 75mm (3″ x 3″)	100 x 75mm (4″ x 3″)	100 x 100mm (4″ x 4″)	76mm Ø (3″)	100mm Ø (4″)	100mm Ø (6″)
Flush Fit	ACCSP3/S/20	ACCSP43/S/20	ACCSP4/S/20	ACCRP3/S/20	ACCRP4/S/20	ACCRP6/S/20
Extended 30mm Stand-off	ACCSP3/S/21	ACCSP43/S/21	ACCSP4/S/21	ACCRP3/S/21	ACCRP4/S/21	ACCRP6/S/21
Extended 2 part variable	ACCSP3C/22	ACCSP43/C/22	ACCSP4/C/22	ACCRP3/C/22	ACCRP4/C/22
Spun Collar: Oblique Connectors	ACCSP3/S/23	ACCSP43/S/23	ACCSP4/S/23	ACCRP3/S/23	ACCRP4/S/23	ACCRP6/S/23
